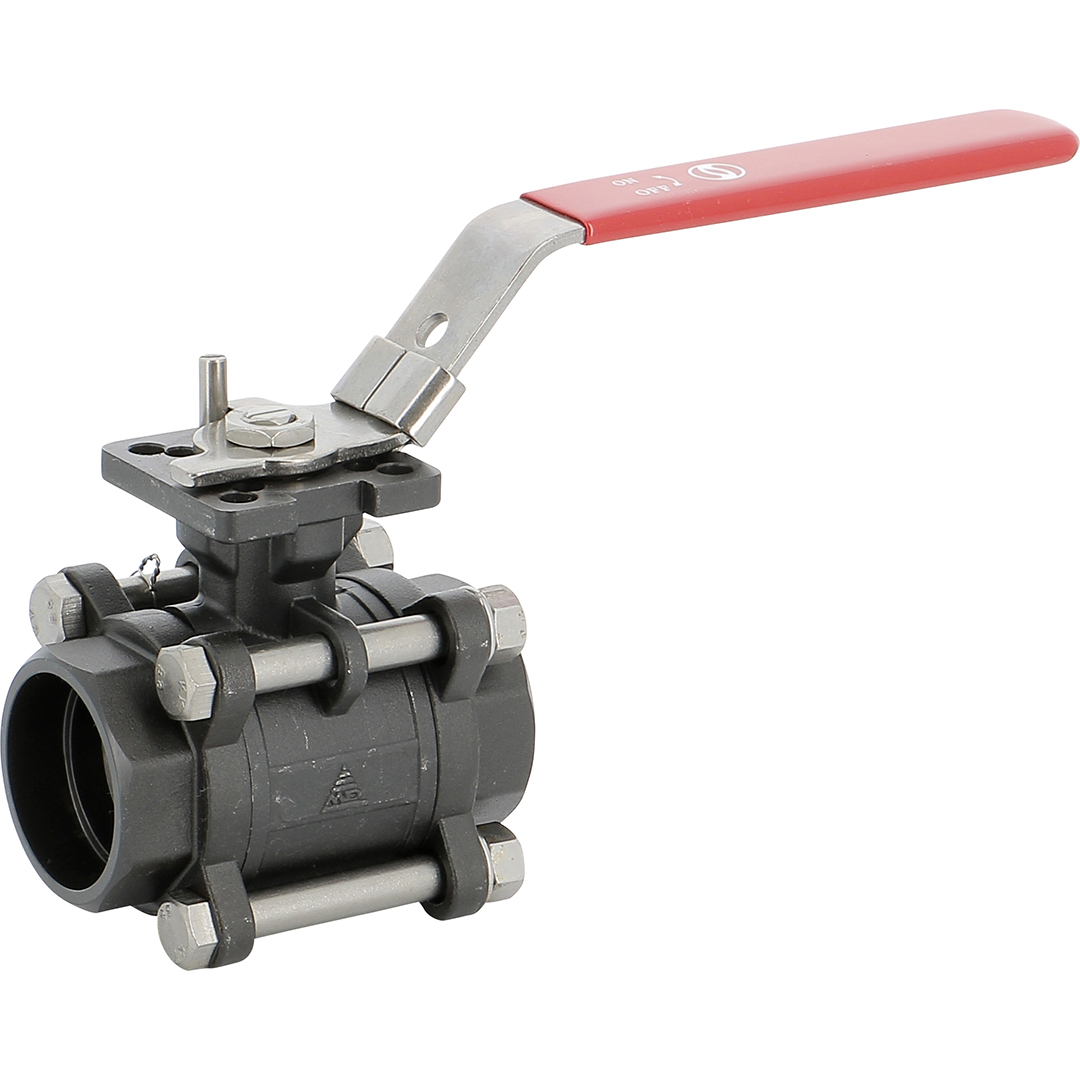

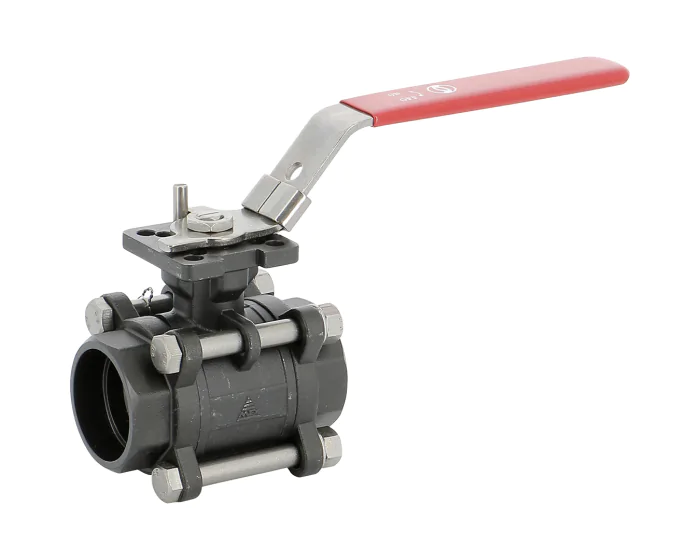

The 739 series ball valve , 3-piece body in steel with ISO pad PN63, welding SW, full bore, for chemical networks, petrochemical industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| Construction standard | EN 12516 - ASME B16.34 |
| CE risk category | III Module H |
| Tightness test standard | EN 12266-1 Rate A |
| Stem sealing material | 25% Graphite filled PTFE gland packing |
| Antistatic device | Yes |
| Steam | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| Square, star (mm) | Square 9 mm |
| ATEX compatible | Yes |
| Torque (Nm) | 7 |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 63.5 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 17.2 |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 63 |
| Connections | Welding SW |
| Seats | PTFE-Stainless steel |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 220 |
| TS min (°C) | -20 |
| Ball valve design | 3-piece body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Main product colour | Black |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN8 - 1/4'' | 739008 | S1008214 |
€40.90
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN10 - 3/8'' | 739010 | S1008215 |
€40.90
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' | 739015 | S1008216 |
€42.59
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' | 739020 | S1008217 |
€48.17
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' | 739025 | S1008218 |
€71.71
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 | 739032 | S1008219 |
€96.30
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 | 739040 | S1008220 |
€141.71
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' | 739050 | S1008221 |
€195.30
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN65 - 2''1/2 | 739065 | S1008222 |
€387.46
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN80 - 3'' | 739080 | S1008223 |
€489.01
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN100 - 4'' | 739100 | S1008224 |
€1,018.99
(excl. btw)
|
add to cart |
